80700 Double Needle FIBC Bag Sewing Machine
Details
YT80700 Two Needle Independent Row, Double Locked Chainstith Machine
Features:
Used To Sew Up The Braided Bag Outside PP

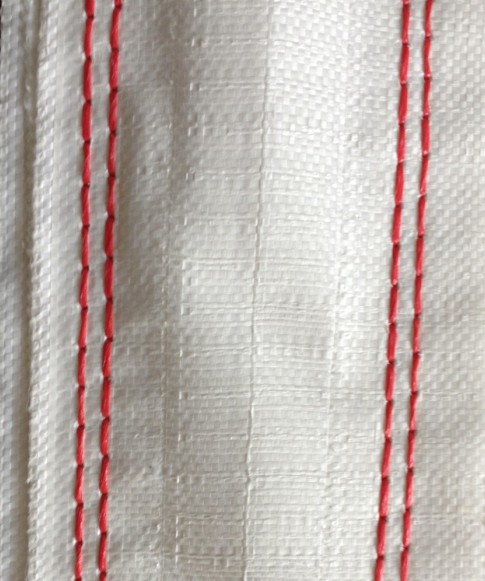

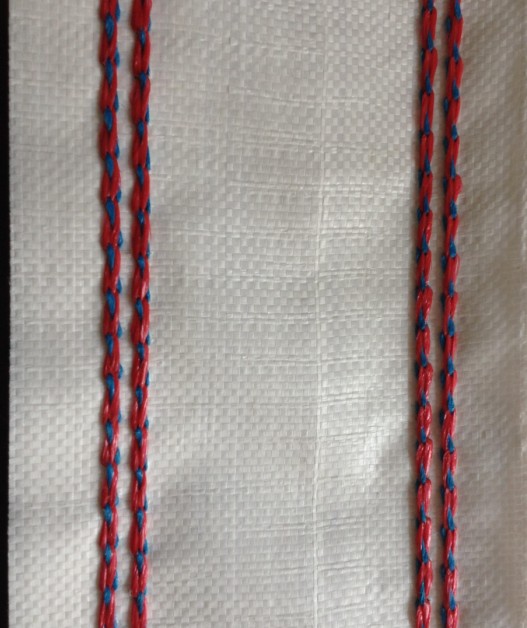

This Sewing Machine Combines The Chain Type Thread Mark With Wrapping Up The Sideline Mark. It Adopts Pairs Machine Needle, Gives The Material On Having Level Charge In Organization, Level Station Board, Four Lines Safety Line Mark. Suitable For Sewing Up The Braided Bags Outside The Polypro Pylene Bigger In Thickness.
缝线规格 seam specification
|
(401.401)SSa-2
|
最高缝纫速度Maximum speed
|
1400转/分
|
机头净重Net weight
|
52kg
|
线迹长度Stitch range
|
6-12mm
|
送料方式Feed
|
上下送料
|
机针型号Need type and size
|
UY9853G 430
|
最大缝合厚度Sewing capacity
|
22mm
|
电动机功率Electric motor power
|
550w
|
手轮直径 Diameter of hand wheel pully |
150mm
|
机针间距 needle distance |
7.2mm
|
